WHEEL DIAMETER

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT235/85R16 E 120R	205140	15.6	31.69	9.57	6.0-(6.5)-7.5	3042 @ 80	45.43
LT245/75R16 E 120/116R	205090	15.6	30.47	9.96	6.5-(7.0)-8.0	3042 @ 80	45.96
LT265/75R16 E 123/120Q	205620	16.8	31.65	10.51	7.0-(7.5)-9.0	3415 @ 80	50.71
LT285/75R16 E 126/123R	205110	16.9	32.87	11.50	7.5-(8.0)-9.5	3750 @ 80	57.98
LT305/70R16 E 124R	205040	16.9	32.79	12.56	8.0-(9.0)-10.0	3525 @ 65	58.21

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT235/80R17 E 120/117R	205130	15.6	31.77	9.32	6.0-(6.5)-8.0	3085 @ 80	45.16
P245/65R17 105S	205270	12.6	29.45	9.76	7.0-(7.0)-8.5	2039 @ 44	35.74
LT245/70R17 E 119/116R	205050	15.7	30.59	9.69	6.5-(7.0)-8.0	3000 @ 80	44.29
LT245/75R17 E 121/118Q	205650	16.4	31.50	9.76	6.5-(7.0)-8.0	3195 @ 80	48.50
265/65R17 112T	205170	12.9	30.51	10.71	7.5-(8.0)-9.5	2469 @ 44	38.68
LT265/70R17 E 121/118Q	205630	16.8	31.65	10.71	7.0-(8.0)-9.0	3195 @ 80	50.71
P265/70R17 113S	205200	13.1	31.57	10.79	7.0-(8.0)-9.0	2535 @ 44	42.58
LT285/70R17 E 126/123R	205070	16.9	32.79	11.49	7.5-(8.5)-9.5	3750 @ 80	55.27
LT285/75R17 E 128/125R	205370	16.9	33.86	11.61	7.5-(8.0)-9.5	3970 @ 80	67.23

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
255/70R18 117S XL	205350	13.0	32.17	10.08	6.5-(7.5)-8.5	2833 @ 50	42.04
265/60R18 110H	205160	12.9	30.60	10.70	7.5-(8.0)-9.5	2337 @ 51	39.33
LT275/65R18 E 123/120Q	205640	16.8	32.09	10.98	8.0-(8.0)-9.5	3415 @ 80	55.12
LT275/70R18 E 125/122R	205080	16.0	33.23	11.00	7.0-(8.0)-9.0	3640 @ 80	53.47
LT305/70R18 E 126/123R	205380	17.3	35.28	12.80	8.0-(9.0)-10.0	3750 @ 65	67.22

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
275/55R20 117H XL	205150	13.0	31.89	11.34	7.5-(8.5)-9.5	2833 @ 50	44.12
LT275/60R20 E 123/120R	205010	16.0	33.03	10.90	8.0-(8.0)-9.5	3415 @ 80	56.46
LT275/65R20 E 126/123R	205030	16.0	34.05	10.90	8.0-(8.0)-9.5	3750 @ 80	60.76
LT305/55R20 E 121/118R	205340	16.0	33.11	12.56	9.0-(9.5)-11.0	3195 @ 65	65.61

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT285/50R22 E 121/118R	205000	16.0	33.27	11.50	8.5-(9.0)-10.0	3195 @ 80	63.83

Dura Grappler

Name: Dura Grappler Highway Terrain Light Truck Tire
Brand: Nitto
Rating: 4.47 (55 reviews)

Highway Terrain Tire

The Dura Grappler^® highway terrain tire was engineered for commercial grade on-road performance and longevity for your truck or SUV. Suitable for a wide variety of light trucks.

UTQG TREADWEAR
P-Metric and Metric Sizes Only: 600

TRACTION: A

TEMPERATURE: B

Find a Store

FEATURES & Benefits

TREADWEAR WARRANTY

The Dura Grappler is engineered to help you make the most of your on-road driving. Its internal construction, wear-oriented compound, and tread design were purposefully engineered to maximize treadlife. In fact, each P-Metric/Metric size is backed by a 60,000-mile limited treadwear warranty. See warranty for complete details.

FEATURES & Benefits

Show your personality

DUAL SIDEWALL DESIGNS

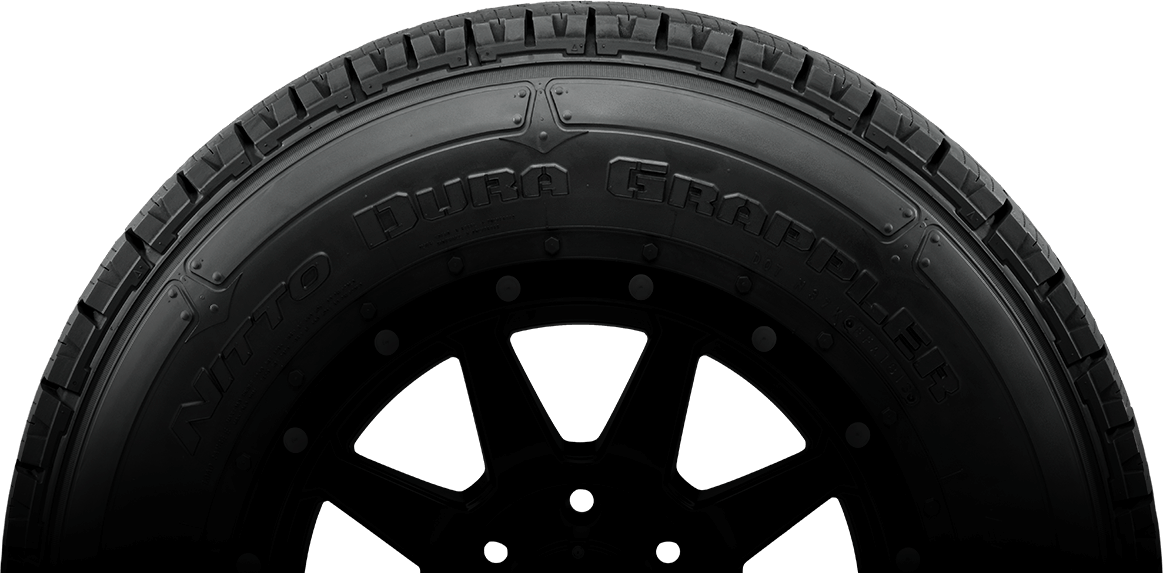

Each Grappler has two sidewall designs so you can choose how your tires look. On the Dura Grappler one side has a metal fin design and the other has a traditional design.

FEATURES & Benefits

Hear what matters

MULTI-RIB PATTERN

The multi-rib pattern helps improve tread life by linking the tread blocks to reduce tread flex, and also results in a quieter tire.

FEATURES & Benefits

Dig in when it gets wet

ADVANCED SIPING TECHNOLOGIES

Waved sipes increase traction in wet conditions while maintaining tread block rigidity.

FEATURES & Benefits

Don't let rain ruin your day

WET PERFORMANCE

Circumferential grooves evacuate water from the tread pattern to maintain road traction in wet driving conditions.

FEATURES & Benefits

A Grappler for every need

SPECIFIC PATTERNS

The Dura Grappler is also offered in two separate tread patterns dedicated for LT-Metric sizes and P-Metric sizes. LT-Metric sizes are offered in a durable 4-rib design, while the P-Metric sizes have a quiet 5-rib design. Each P-Metric/Metric size is backed by a 60,000-mile limited treadwear warranty. See warranty for complete details.
