WHEEL DIAMETER

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT295/75R16 E 128/125R	219050	16.6	33.39	11.57	7.5-(8.0)-10.0	3970 @ 80	61.71
LT305/70R16 F 128/125R	218910	16.3	32.83	12.24	8.0-(9.0)-10.0	3970 @ 80	65.87
LT315/75R16 E 127/124R	218920	16.3	34.57	12.32	8.0-(8.5)-10.5	3860 @ 65	70.33
33x11.50R16LT E 124R	219150	16.9	32.52	11.42	7.5-(9.0)-10.0	3525 @ 80	59.39
35x11.50R16LT D 125R	218950	16.9	34.53	11.42	7.5-(9.0)-10.0	3640 @ 65	68.34

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT255/80R17 E 123/120R	218750	15.6	33.07	10.04	6.5-(7.0)-8.5	3415 @ 80	56.06
LT265/70R17 E 123/120S	218740	15.7	31.65	10.71	7.0-(8.0)-9.0	3415 @ 80	50.97
285/70R17 116T	218810	13.6	32.76	11.50	7.5-(8.5)-9.5	2756 @ 44	48.94
LT285/70R17 E 126/123S	218670	16.0	32.76	11.50	7.5-(8.5)-9.5	3750 @ 80	54.59
LT285/75R17 E 128/125R	218680	16.0	33.86	11.26	7.5-(8.0)-9.5	3970 @ 80	61.29
LT295/70R17 E 128/125R	218690	16.1	33.31	11.77	7.5-(8.5)-10.0	3970 @ 80	62.35
LT305/70R17 E 125/122R	218700	16.3	33.86	12.24	8.0-(9.0)-10.0	3640 @ 65	64.40
315/70R17 116T	218800	14.0	34.41	12.72	8.0-(9.5)-10.5	2756 @ 44	64.13
LT315/70R17 E 126/123R	218710	16.3	34.41	12.72	8.0-(9.5)-10.5	3750 @ 65	67.37
33x11.50R17LT D 119S	218770	16.9	32.52	11.42	8.0-(9.0)-10.5	3000 @ 65	57.30
35x11.50R17LT C 118R	219090	16.9	34.53	11.42	7.5-(9.0)-10.0	2910 @ 50	64.44
37x11.50R17LT D 128R	218650	16.9	36.54	11.42	7.5-(9.0)-10.0	3970 @ 65	70.61
33x12.50R17LT F 124R	218660	16.9	32.52	12.52	8.5-(10.0)-11.0	3525 @ 80	63.54
35x12.50R17LT E 125R	218640	16.9	34.53	12.52	8.0-(10.0)-10.5	3640 @ 65	67.24
37x12.50R17LT D 124R	218560	16.9	36.54	12.52	8.5-(10.0)-10.5	3525 @ 50	75.57
37x13.50R17LT D 125R	219020	16.9	36.54	13.58	9.0-(11.0)-11.5	3640 @ 50	81.57

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT275/70R18 E 125/122S	218730	15.9	33.19	10.98	7.0-(8.0)-9.0	3640 @ 80	54.34
285/65R18 116T XL	219230	13.6	32.56	11.50	8.0-(8.5)-10.0	2756 @ 50	47.02
LT285/65R18 E 125/122R	218590	16.0	32.56	11.50	8.5-(8.5)-10.0	3640 @ 80	55.95
LT285/70R18 E 127/124R	218790	16.0	33.74	11.50	7.5-(8.5)-9.5	3860 @ 80	59.50
LT285/75R18 E 129/126R	218600	16.0	34.84	11.26	7.5-(8.0)-9.5	4080 @ 80	63.65
295/70R18 116S	218880	13.7	34.29	11.77	7.5-(8.5)-10.0	2756 @ 44	52.49
LT295/70R18 E 129/126R	218610	16.1	34.29	11.77	7.5-(8.5)-10.0	4080 @ 80	63.60
305/60R18 116S	218840	13.9	32.40	12.24	8.5-(9.0)-11.0	2756 @ 44	49.91
LT305/65R18 F 128/125R	218720	16.3	33.58	12.24	9.0-(9.0)-11.0	3970 @ 80	65.46
LT305/70R18 D 120/117R	218760	16.3	34.84	12.24	8.0-(9.0)-10.0	3085 @ 50	67.97
LT325/60R18 E 124/121S	218620	16.4	33.35	13.03	9.5-(9.5)-11.5	3525 @ 65	64.26
LT325/65R18 E 127/124R	218630	16.4	34.61	13.03	9.5-(9.5)-11.5	3860 @ 65	71.08
33x11.50R18LT E 122S	219030	16.9	32.52	11.42	8.0-(9.0)-10.5	3305 @ 80	56.92
35x12.50R18LT F 128R	218570	16.9	34.53	12.52	8.5-(10.0)-11.0	3970 @ 80	70.33
37x12.50R18LT E 128R	218580	16.9	36.54	12.52	8.0-(10.0)-10.5	3970 @ 65	74.08

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
265/50R20 111T XL	218820	13.4	30.47	10.91	7.5-(8.5)-9.5	2403 @ 50	40.10
LT265/60R20 E 121/118S	218550	15.7	32.52	10.71	8.0-(8.0)-9.5	3195 @ 80	54.01
275/55R20 117T XL	218010	13.5	31.89	11.18	7.5-(8.5)-9.5	2833 @ 50	44.31
LT275/55R20 E 120/117S	218260	15.9	31.89	11.18	8.0-(8.5)-9.5	3085 @ 80	53.76
275/60R20 116S XL	218380	13.5	32.99	10.98	7.5-(8.0)-9.5	2756 @ 50	46.98
LT275/60R20 E 123/120S	218300	15.9	32.99	10.98	8.0-(8.0)-9.5	3415 @ 80	55.03
275/65R20 116T	218460	13.5	34.09	10.98	7.5-(8.0)-9.5	2756 @ 44	47.53
LT275/65R20 E 126/123S	218000	15.9	34.09	10.98	8.0-(8.0)-9.5	3750 @ 80	58.60
285/50R20 116T XL	218430	13.6	31.26	11.69	8.0-(9.0)-10.0	2756 @ 50	44.86
285/55R20 116T XL	218830	13.6	32.36	11.69	8.0-(9.0)-10.0	2756 @ 50	47.00
LT285/55R20 E 122/119S	218230	16.0	32.36	11.69	8.5-(9.0)-10.0	3305 @ 80	56.66
LT285/60R20 E 125/122S	218310	16.0	33.46	11.50	8.5-(8.5)-10.0	3640 @ 80	59.88
LT285/65R20 E 127/124S	218180	16.0	34.57	11.50	8.5-(8.5)-10.0	3860 @ 80	60.30
LT295/55R20 E 123/120S	218190	16.1	32.76	12.17	8.5-(9.5)-10.5	3415 @ 80	60.07
LT295/60R20 E 126/123S	218170	16.1	33.94	11.77	8.0-(8.5)-10.0	3750 @ 80	60.53
LT295/65R20 E 129/126S	218210	16.1	35.12	11.77	8.5-(8.5)-10.5	4080 @ 80	64.93
305/50R20 120S XL	218420	13.9	32.05	12.44	8.5-(9.5)-11.0	3086 @ 50	49.98
305/55R20 116S	218400	13.9	33.23	12.44	8.5-(9.5)-11.0	2756 @ 44	51.37
LT305/55R20 F 125/122S	218250	16.3	33.23	12.44	9.0-(9.5)-11.0	3640 @ 80	65.79
315/60R20 116S	218360	14.0	34.88	12.72	8.5-(9.5)-11.0	2756 @ 44	57.23
LT315/60R20 E 125/122S	218320	16.3	34.88	12.72	9.5-(9.5)-11.0	3640 @ 65	69.84
LT325/60R20 E 126/123S	218220	16.4	35.35	13.03	9.5-(9.5)-11.5	3750 @ 65	71.10
34x11.50R20LT E 121R	218330	16.9	33.50	11.42	8.0-(9.0)-10.5	3195 @ 80	61.88
35x11.50R20LT E 124R	218090	16.9	34.53	11.42	8.0-(9.0)-10.5	3525 @ 80	60.65
37x11.50R20LT E 128R	219220	16.9	36.54	11.42	7.5-(9.0)-10.0	3970 @ 80	73.04
33x12.50R20LT F 119R	218050	16.9	32.52	12.52	8.5-(10.0)-11.0	3000 @ 80	62.68
35x12.50R20LT F 125R	218020	16.9	34.53	12.52	8.5-(10.0)-11.0	3640 @ 80	70.35
37x12.50R20LT E 126R	218030	16.9	36.54	12.52	8.5-(10.0)-11.0	3750 @ 65	74.30
35x13.50R20LT F 126R	218110	16.9	34.53	13.58	9.5-(11.0)-12.0	3750 @ 80	76.08
37x13.50R20LT E 127R	218070	16.9	36.54	13.58	9.5-(11.0)-12.0	3860 @ 65	79.19

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
285/45R22 114H XL	218390	13.6	32.09	11.22	9.0-(9.5)-10.5	2601 @ 50	43.61
LT285/50R22 E 121/118S	218280	16.0	33.27	11.69	8.5-(9.0)-10.0	3195 @ 80	60.38
LT285/55R22 E 124/121S	218270	16.0	34.37	11.69	8.5-(9.0)-10.0	3525 @ 80	61.20
305/40R22 114S XL	218470	13.9	31.61	12.32	10.0-(11.0)-12.0	2601 @ 50	46.94
305/45R22 118S XL	218410	13.9	32.80	11.93	9.5-(10.0)-11.5	2910 @ 50	46.94
305/55R22 116S	218370	13.9	35.24	12.44	8.5-(9.5)-11.0	2756 @ 44	62.02
315/45R22 116S	218450	14.0	33.19	12.40	10.0-(10.5)-12.0	2756 @ 44	50.31
LT325/50R22 F 127S	218290	16.4	34.84	13.23	9.5-(10.0)-11.5	3860 @ 80	75.18
33x12.50R22LT F 114R	218130	16.9	32.52	12.52	8.5-(10.0)-11.0	2600 @ 80	63.88
35x12.50R22LT F 121R	218100	16.9	34.53	12.52	8.5-(10.0)-11.0	3195 @ 80	69.74
37x13.50R22LT F 128R	218060	16.9	36.54	13.58	9.5-(11.0)-12.0	3970 @ 80	78.43

Tire Size	Stock Number	Tread Depth(1/32 in)	Overall Dia (in)Inflated Dimensions	Overall Width (in)Inflated Dimensions	Approved Rim Width RangeMin-(Measuring)-Max (in)	Maximum Load (lbs.) @ Press. (PSI)	Weight (lbs)
LT295/45R24 E 120/117R	218900	16.1	34.49	11.65	9.5-(10.0)-11.0	3085 @ 80	69.00
305/35R24 112S XL	218440	13.9	32.44	12.32	10.0-(11.0)-12.0	2469 @ 50	53.13
315/45R24 116S	218350	14.0	35.20	12.40	10.0-(10.5)-12.0	2756 @ 44	59.30
LT315/50R24 F 127/124S	218340	16.3	36.46	12.91	9.5-(10.0)-11.0	3860 @ 80	79.76
LT325/45R24 F 124R	218930	16.4	35.51	12.83	10.0-(11.0)-12.0	3525 @ 80	78.29
35x12.50R24LT F 116R	218150	16.9	34.53	12.44	10.0-(10.5)-12.0	2755 @ 80	73.44
37x13.50R24LT F 124R	218140	16.9	36.54	13.58	9.5-(11.0)-12.0	3525 @ 80	82.59

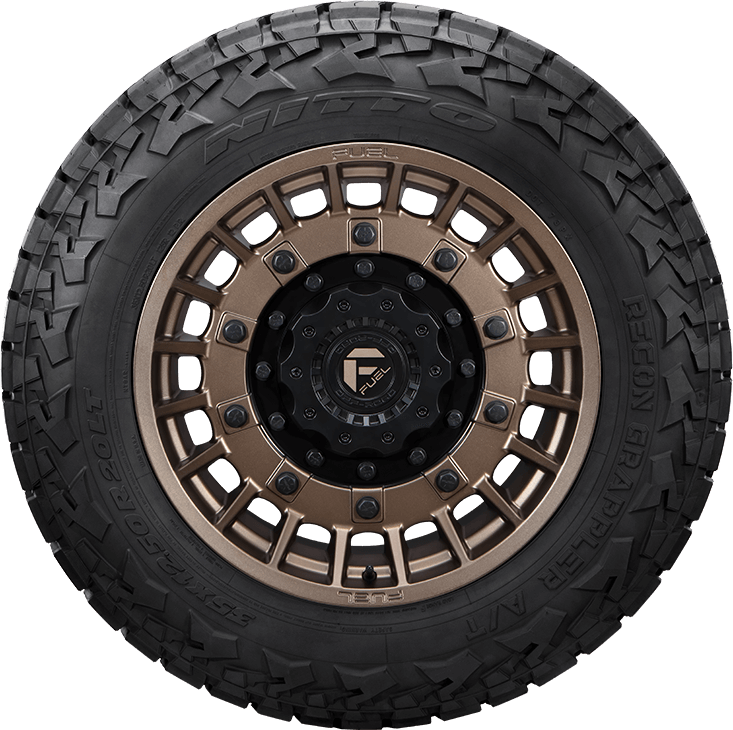

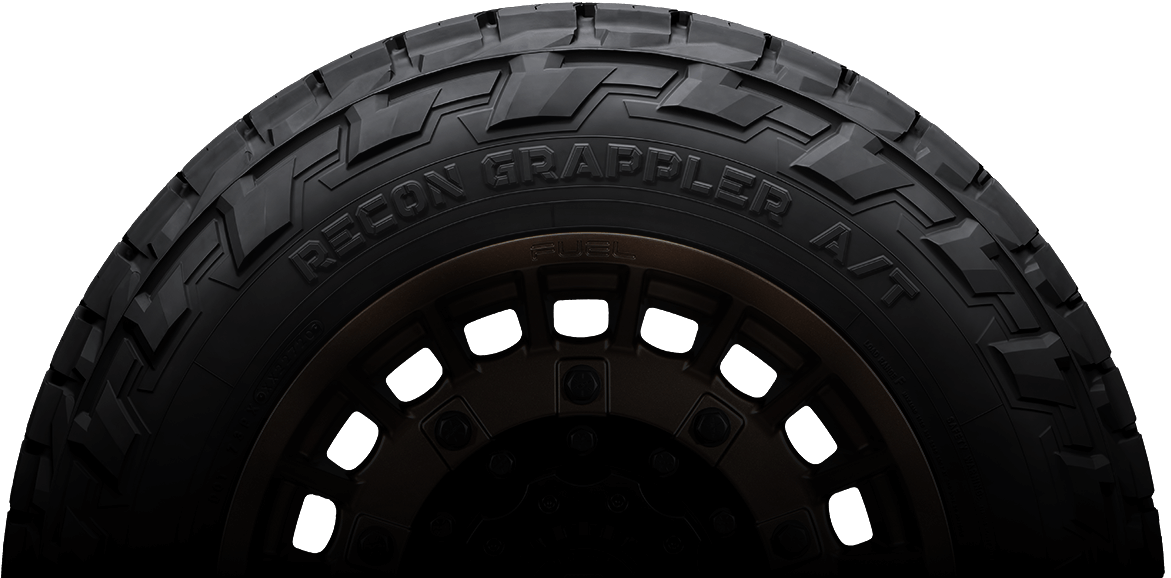

Recon Grappler

All-terrain light truck tire

The Recon Grappler^® A/T combines versatility and distinctive design into an all-terrain tire that stands out from the crowd.

UTQG TREADWEAR
S,T Speed Rating: 600

TRACTION: A

TEMPERATURE: B

UTQG TREADWEAR
H Speed Rating: 600

TRACTION: A

TEMPERATURE: A

Find a Store

Lead the Pack.

With its tall, prominent sidewall lugs and aggressive tread design proving capable off-road performance and a comfortable highway ride, the Recon Grappler^® is made to keep you out front.

FEATURES & Benefits

Go above and beyond

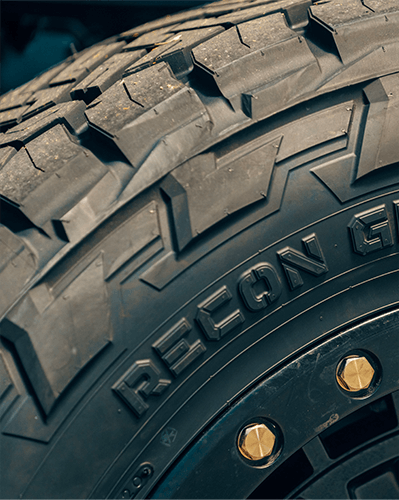

PROVEN PERFORMANCE, BOLD IDENTITY

The Recon Grappler^®'s staggered shoulder lugs provides enhanced off-road traction and the bold sidewall lugs give it eye-catching aesthetics.

FEATURES & Benefits

Treadwear Warranty

Recon Grappler^® features engineered versatility and durability. Not only do you get a quiet comfortable ride and capable performance, but you get the backing of Nitto's limited treadwear warranty which covers 55,000 miles for LT-metric and flotation sizes, and 65,000 miles for hard metric sizes.

See warranty for complete details

FEATURES & Benefits

Tread Quietly

Wide and narrow grooves

The arrangement of wide and narrow grooves in the tread pattern reduce road noise, while also improving traction.

FEATURES & Benefits

Style, Meet Toughness

LARGE TREAD AND SHOULDER BLOCKS

Large shoulder and tread blocks with optimized siping results in better handling and more stable performance in both wet and dry conditions. It also results in an aggressive tread pattern design that stands out from other all-terrain light truck tires.

FEATURES & Benefits

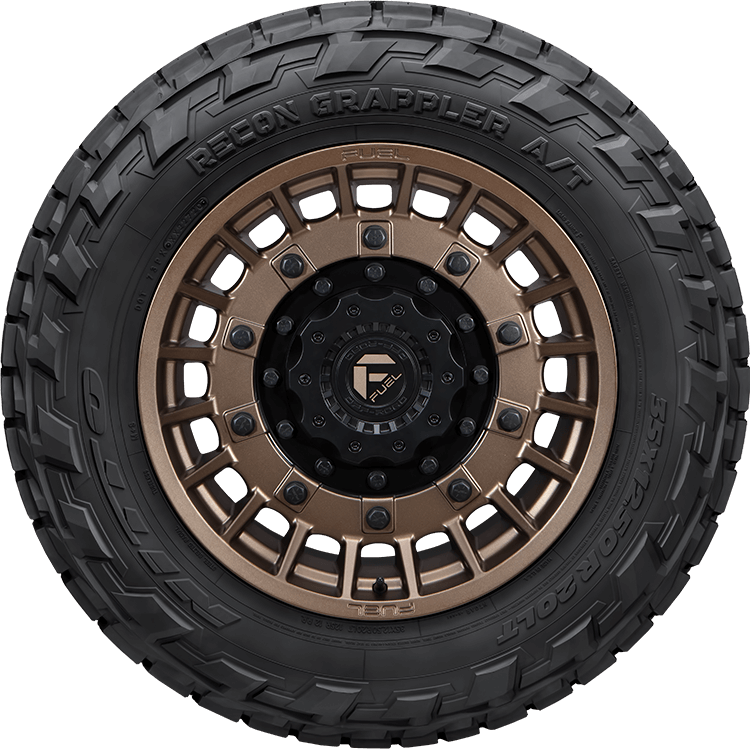

Show Your Personality

DUAL SIDEWALL DESIGN

The Recon Grappler^® comes equipped with two unique sidewall designs, just like every Grappler, so that you can choose the design that best fits your vehicle.
