Sizes & Specs
WHEEL DIAMETER
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 205/50ZR15 89W XL | 207350 | 7.2 | 23.11 | 8.43 | 5.5-(6.5)-7.5 | 1279 @ 50 | 19.67 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 225/45R17 94W XL | 207360 | 7.2 | 24.96 | 8.86 | 7.0-(7.5)-8.5 | 1477 @ 50 | 23.15 |
| 235/40ZR17 90W | 207120 | 7.2 | 24.45 | 9.57 | 8.0-(8.5)-9.5 | 1323 @ 51 | 23.01 |
| 235/45R17 97W XL | 207330 | 7.2 | 25.35 | 9.29 | 7.5-(8.0)-9.0 | 1609 @ 50 | 24.56 |
| 255/40ZR17 98W XL | 207130 | 7.2 | 25.08 | 10.12 | 8.5-(9.0)-10.0 | 1653 @ 50 | 26.27 |
| 275/40ZR17 98W | 207010 | 7.2 | 25.59 | 10.79 | 9.0-(9.5)-11.0 | 1653 @ 51 | 28.25 |
| 315/35ZR17 102W | 207000 | 7.2 | 25.55 | 12.40 | 10.5-(11.0)-12.5 | 1874 @ 51 | 30.75 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 225/40R18 92W XL | 207240 | 7.2 | 25.08 | 9.06 | 7.5-(8.0)-9.0 | 1389 @ 50 | 23.87 |
| 235/40R18 95W XL | 207160 | 7.2 | 25.43 | 9.57 | 8.0-(8.5)-9.5 | 1521 @ 50 | 24.43 |
| 245/40R18 97W XL | 207030 | 7.2 | 25.59 | 9.65 | 8.0-(8.5)-9.5 | 1609 @ 50 | 25.20 |
| 255/35ZR18 94W XL | 207340 | 7.2 | 25.00 | 10.24 | 8.5-(9.0)-10.0 | 1477 @ 50 | 25.17 |
| 265/35R18 97W XL | 207060 | 7.2 | 25.31 | 10.59 | 9.0-(9.5)-10.5 | 1609 @ 50 | 26.52 |
| 275/35ZR18 95W† | 207390 | 7.2 | 25.55 | 10.94 | 9.0-(9.5)-11.0 | 1521 @ 51 | 28.05 |
| 275/35ZR18 99W XL | 207020 | 7.2 | 25.63 | 10.79 | 9.0-(9.5)-11.0 | 1709 @ 50 | 27.56 |
| 275/40ZR18 99W | 207050 | 7.2 | 26.57 | 10.79 | 9.0-(9.5)-11.0 | 1709 @ 51 | 29.63 |
| 285/35ZR18 101W XL | 207140 | 7.2 | 25.91 | 11.30 | 9.5-(10.0)-11.0 | 1819 @ 50 | 28.95 |
| 295/35ZR18 99W | 207150 | 7.2 | 26.18 | 11.61 | 10.0-(10.5)-11.5 | 1709 @ 51 | 30.03 |
| 295/35ZR18 99W† | 207400 | 7.2 | 26.10 | 11.85 | 10.0-(10.5)-11.5 | 1709 @ 51 | 30.24 |
| 295/40ZR18 103W† | 207410 | 7.2 | 27.28 | 11.85 | 10.0-(10.5)-11.5 | 1929 @ 51 | 32.92 |
| 295/45ZR18 112W XL | 207170 | 7.2 | 28.46 | 11.46 | 9.5-(10.0)-11.0 | 2469 @ 50 | 33.58 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 235/35ZR19 91W XL | 207080 | 7.2 | 25.43 | 9.53 | 8.0-(8.5)-9.5 | 1356 @ 50 | 24.19 |
| 245/35R19 93W XL | 207090 | 7.2 | 25.79 | 9.69 | 8.0-(8.5)-9.5 | 1433 @ 50 | 24.73 |
| 245/40ZR19 98W XL | 207200 | 7.2 | 26.73 | 9.65 | 8.0-(8.5)-9.5 | 1653 @ 50 | 26.87 |
| 255/40ZR19 100W XL | 207370 | 7.2 | 27.05 | 10.24 | 8.5-(9.0)-10.0 | 1764 @ 50 | 28.24 |
| 275/30R19 96W XL | 207070 | 7.2 | 25.51 | 10.71 | 9.0-(9.5)-10.0 | 1565 @ 50 | 27.73 |
| 275/35ZR19 100W XL | 207100 | 7.2 | 26.65 | 10.79 | 9.0-(9.5)-11.0 | 1764 @ 50 | 28.98 |
| 305/35ZR19 102W | 207380 | 7.2 | 27.44 | 12.32 | 10.0-(11.0)-12.0 | 1874 @ 51 | 33.68 |
| 335/30ZR19 103W | 207180 | 7.2 | 26.89 | 13.31 | 11.5-(12.0)-12.5 | 1929 @ 51 | 33.94 |
| Tire Size |
Stock Number |
Tread Depth(1/32 in) |
Overall Dia (in)Inflated Dimensions | Overall Width (in)Inflated Dimensions | Approved Rim Width RangeMin-(Measuring)-Max (in) |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 255/35ZR20 97W XL | 207210 | 7.2 | 26.97 | 10.08 | 8.5-(9.0)-10.0 | 1609 @ 50 | 27.69 |
| 255/45ZR20 101W | 207230 | 7.2 | 29.06 | 10.08 | 8.0-(8.5)-9.5 | 1819 @ 51 | 31.68 |
| 275/35ZR20 102W XL | 207220 | 7.2 | 27.56 | 10.75 | 9.0-(9.5)-11.0 | 1874 @ 50 | 30.49 |
| 275/40R20 106W XL | 207040 | 7.2 | 28.62 | 10.79 | 9.0-(9.5)-11.0 | 2094 @ 50 | 32.51 |
| 305/30ZR20 103W XL | 207320 | 7.2 | 27.24 | 12.32 | 10.5-(11.0)-11.5 | 1929 @ 50 | 32.91 |
| 315/35ZR20 110W XL | 207110 | 7.2 | 28.62 | 12.40 | 10.5-(11.0)-12.5 | 2337 @ 50 | 35.53 |
Technical specs are subject to change without notice.
*Indicates Extra Load (XL)
† Indicates U.T.Q.G.rating 140AA A
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
205/50ZR15 89W XL
- Stock Number: 207350
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 23.11
- Inflated Dimensions - Overall Width (in): 8.43
-
Approved Rim Width Range (in): 5.5-(6.5)-7.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1279 @ 50
- Weight: 19.67
-
225/45R17 94W XL
- Stock Number: 207360
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 24.96
- Inflated Dimensions - Overall Width (in): 8.86
-
Approved Rim Width Range (in): 7.0-(7.5)-8.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1477 @ 50
- Weight: 23.15
-
235/40ZR17 90W
- Stock Number: 207120
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 24.45
- Inflated Dimensions - Overall Width (in): 9.57
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1323 @ 51
- Weight: 23.01
-
235/45R17 97W XL
- Stock Number: 207330
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.35
- Inflated Dimensions - Overall Width (in): 9.29
-
Approved Rim Width Range (in): 7.5-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1609 @ 50
- Weight: 24.56
-
255/40ZR17 98W XL
- Stock Number: 207130
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.08
- Inflated Dimensions - Overall Width (in): 10.12
-
Approved Rim Width Range (in): 8.5-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1653 @ 50
- Weight: 26.27
-
275/40ZR17 98W
- Stock Number: 207010
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.59
- Inflated Dimensions - Overall Width (in): 10.79
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1653 @ 51
- Weight: 28.25
-
315/35ZR17 102W
- Stock Number: 207000
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.55
- Inflated Dimensions - Overall Width (in): 12.40
-
Approved Rim Width Range (in): 10.5-(11.0)-12.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1874 @ 51
- Weight: 30.75
-
225/40R18 92W XL
- Stock Number: 207240
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.08
- Inflated Dimensions - Overall Width (in): 9.06
-
Approved Rim Width Range (in): 7.5-(8.0)-9.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1389 @ 50
- Weight: 23.87
-
235/40R18 95W XL
- Stock Number: 207160
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.43
- Inflated Dimensions - Overall Width (in): 9.57
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1521 @ 50
- Weight: 24.43
-
245/40R18 97W XL
- Stock Number: 207030
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.59
- Inflated Dimensions - Overall Width (in): 9.65
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1609 @ 50
- Weight: 25.20
-
255/35ZR18 94W XL
- Stock Number: 207340
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.00
- Inflated Dimensions - Overall Width (in): 10.24
-
Approved Rim Width Range (in): 8.5-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1477 @ 50
- Weight: 25.17
-
265/35R18 97W XL
- Stock Number: 207060
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.31
- Inflated Dimensions - Overall Width (in): 10.59
-
Approved Rim Width Range (in): 9.0-(9.5)-10.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1609 @ 50
- Weight: 26.52
-
275/35ZR18 95W†
- Stock Number: 207390
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.55
- Inflated Dimensions - Overall Width (in): 10.94
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1521 @ 51
- Weight: 28.05
-
275/35ZR18 99W XL
- Stock Number: 207020
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.63
- Inflated Dimensions - Overall Width (in): 10.79
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1709 @ 50
- Weight: 27.56
-
275/40ZR18 99W
- Stock Number: 207050
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 26.57
- Inflated Dimensions - Overall Width (in): 10.79
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1709 @ 51
- Weight: 29.63
-
285/35ZR18 101W XL
- Stock Number: 207140
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.91
- Inflated Dimensions - Overall Width (in): 11.30
-
Approved Rim Width Range (in): 9.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1819 @ 50
- Weight: 28.95
-
295/35ZR18 99W
- Stock Number: 207150
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 26.18
- Inflated Dimensions - Overall Width (in): 11.61
-
Approved Rim Width Range (in): 10.0-(10.5)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1709 @ 51
- Weight: 30.03
-
295/35ZR18 99W†
- Stock Number: 207400
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 26.10
- Inflated Dimensions - Overall Width (in): 11.85
-
Approved Rim Width Range (in): 10.0-(10.5)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1709 @ 51
- Weight: 30.24
-
295/40ZR18 103W†
- Stock Number: 207410
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 27.28
- Inflated Dimensions - Overall Width (in): 11.85
-
Approved Rim Width Range (in): 10.0-(10.5)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 51
- Weight: 32.92
-
295/45ZR18 112W XL
- Stock Number: 207170
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 28.46
- Inflated Dimensions - Overall Width (in): 11.46
-
Approved Rim Width Range (in): 9.5-(10.0)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2469 @ 50
- Weight: 33.58
-
235/35ZR19 91W XL
- Stock Number: 207080
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.43
- Inflated Dimensions - Overall Width (in): 9.53
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1356 @ 50
- Weight: 24.19
-
245/35R19 93W XL
- Stock Number: 207090
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.79
- Inflated Dimensions - Overall Width (in): 9.69
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1433 @ 50
- Weight: 24.73
-
245/40ZR19 98W XL
- Stock Number: 207200
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 26.73
- Inflated Dimensions - Overall Width (in): 9.65
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1653 @ 50
- Weight: 26.87
-
255/40ZR19 100W XL
- Stock Number: 207370
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 27.05
- Inflated Dimensions - Overall Width (in): 10.24
-
Approved Rim Width Range (in): 8.5-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1764 @ 50
- Weight: 28.24
-
275/30R19 96W XL
- Stock Number: 207070
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 25.51
- Inflated Dimensions - Overall Width (in): 10.71
-
Approved Rim Width Range (in): 9.0-(9.5)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1565 @ 50
- Weight: 27.73
-
275/35ZR19 100W XL
- Stock Number: 207100
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 26.65
- Inflated Dimensions - Overall Width (in): 10.79
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1764 @ 50
- Weight: 28.98
-
305/35ZR19 102W
- Stock Number: 207380
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 27.44
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.0-(11.0)-12.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1874 @ 51
- Weight: 33.68
-
335/30ZR19 103W
- Stock Number: 207180
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 26.89
- Inflated Dimensions - Overall Width (in): 13.31
-
Approved Rim Width Range (in): 11.5-(12.0)-12.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 51
- Weight: 33.94
-
255/35ZR20 97W XL
- Stock Number: 207210
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 26.97
- Inflated Dimensions - Overall Width (in): 10.08
-
Approved Rim Width Range (in): 8.5-(9.0)-10.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1609 @ 50
- Weight: 27.69
-
255/45ZR20 101W
- Stock Number: 207230
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 29.06
- Inflated Dimensions - Overall Width (in): 10.08
-
Approved Rim Width Range (in): 8.0-(8.5)-9.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1819 @ 51
- Weight: 31.68
-
275/35ZR20 102W XL
- Stock Number: 207220
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 27.56
- Inflated Dimensions - Overall Width (in): 10.75
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1874 @ 50
- Weight: 30.49
-
275/40R20 106W XL
- Stock Number: 207040
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 28.62
- Inflated Dimensions - Overall Width (in): 10.79
-
Approved Rim Width Range (in): 9.0-(9.5)-11.0
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2094 @ 50
- Weight: 32.51
-
305/30ZR20 103W XL
- Stock Number: 207320
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 27.24
- Inflated Dimensions - Overall Width (in): 12.32
-
Approved Rim Width Range (in): 10.5-(11.0)-11.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 1929 @ 50
- Weight: 32.91
-
315/35ZR20 110W XL
- Stock Number: 207110
- Tread Depth (1/32 in): 7.2
- Inflated Dimensions - Overall Dia (in): 28.62
- Inflated Dimensions - Overall Width (in): 12.40
-
Approved Rim Width Range (in): 10.5-(11.0)-12.5
Min -(Measuring)- Max - Maximum Load (lbs.) @ Press. (PSI): 2337 @ 50
- Weight: 35.53

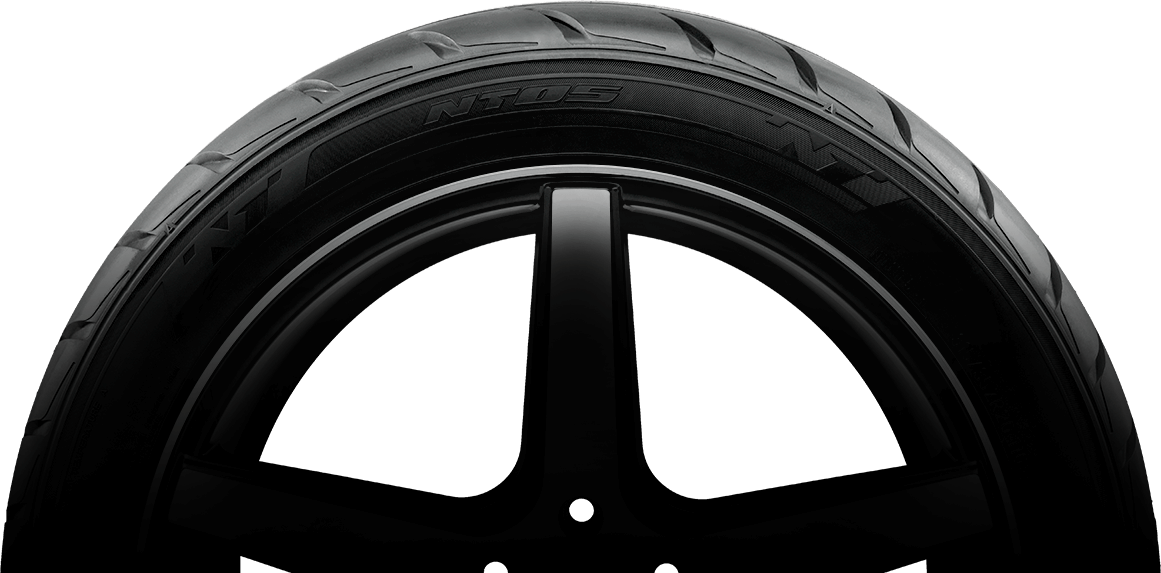

NT05
Max Performance Tire
The NT05® is a max performance tire engineered to complement the power of your vehicle. It was developed through extensive computer simulation modeling and on-track testing.
UTQG TREADWEAR
Select W-Speed Rated Sizes: 140
Select W-Speed Rated Sizes: 140
UTQG TREADWEAR:
200
TRACTION:
AA
TEMPERATURE:
A
Find a Store
Pure street performance
The rigorous development process helped produce a street tire that provides precise and responsive handling and performance. Knowing the tire is responding to your inputs will inspire your confidence.
FEATURES & Benefits
Glued to the pavement
DRY PERFORMANCE

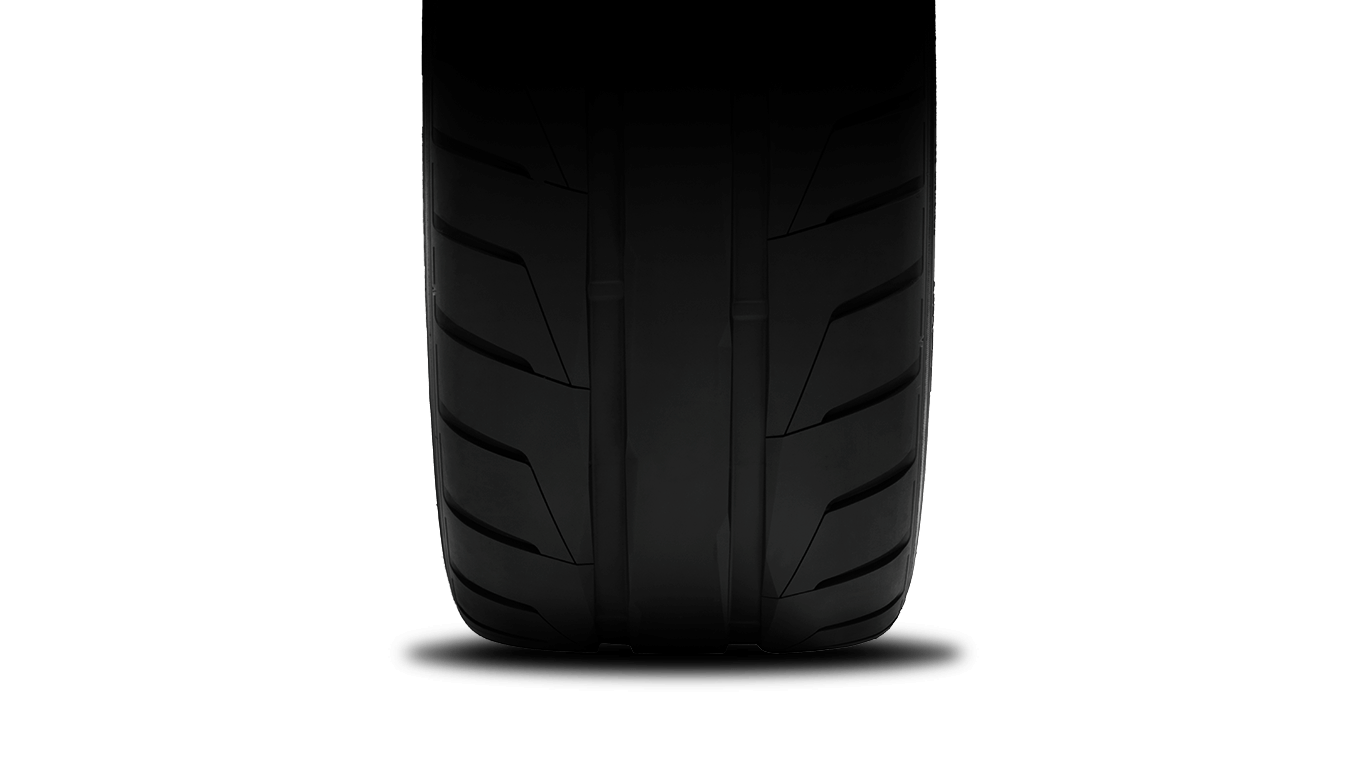

The continuous center rib combined with large outer shoulder tread blocks provide consistent contact with the road for a high-level of dry performance.
FEATURES & Benefits
Precision through the turns
PREDICTABLE CORNERING
The specifically formulated tread compound and reinforced internal construction were engineered to emphasize dry road response, traction, handling and high-speed capabilities.
FEATURES & Benefits
Carve up corners
HANDLING STABILITY
The reinforced tread blocks and the large continuous center rib provide exceptional rigidity and stability.
Overall ratings
PERFORMANCE RATINGS
-
Dry Performance is a 5 out of 55 -
Wet Performance is a 3 out of 53 -
Quietness is a 2.5 out of 52.5 -
Ride Comfort is a 2.5 out of 52.5
UTQG TIRE RATINGS
-
Select W-Speed Rated Sizes Treadwear:140
-
Treadwear:200
-
TRACTION:AA
-
TEMPERATURE:A
Please note: The following element is a 3D 360-degree interactive model of this tire, designed to showcase the distinct features of the tread, sidewall or other visual characteristics, which have been previously described on this page. For a detailed description of the tire's characteristics, please refer to the content provided elsewhere on this page. To interact with a keyboard, assistive technologies such as screen readers may need to be temporarily disabled. Use your keyboard or mouse to drag and rotate the tire left or right.
Find nitto tires near you
Reviews
What our customers are saying
Lifestyle
