Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
Sizes & Specs
WHEEL DIAMETER
Tire Size |
Stock Number |
Tread Depth |
Overall Dia (in)Inflated Dimensions | Overall WidthInflated Dimensions | Approved Rim |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
---|---|---|---|---|---|---|---|
LT285/75R16 D 122/119Q | 200020 | 16.5 | 32.68 | 11.34 | 7.5-(8.0)-9.5 | 3305 @ 65 | 57.43 |
LT295/75R16 D 123/120Q | 200030 | 16.5 | 33.27 | 11.73 | 7.5-(8.0)-10.0 | 3415 @ 65 | 57.87 |
Tire Size |
Stock Number |
Tread Depth |
Overall Dia (in)Inflated Dimensions | Overall WidthInflated Dimensions | Approved Rim |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
---|---|---|---|---|---|---|---|
255/60R18 112S XL - Replaced with Nomad Grappler | 201180 | 12.7 | 30.00 | 10.28 | 7.0-(7.5)-9.0 | 2469 @ 50 | 41.17 |
Tire Size |
Stock Number |
Tread Depth |
Overall Dia (in)Inflated Dimensions | Overall WidthInflated Dimensions | Approved Rim |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
---|---|---|---|---|---|---|---|
305/40R22 114S XL - Replaced with Recon Grappler | 200780 | 13.9 | 31.61 | 12.32 | 10.0-(11.0)-12.0 | 2601 @ 50 | 45.88 |
Tire Size |
Stock Number |
Tread Depth |
Overall Dia (in)Inflated Dimensions | Overall WidthInflated Dimensions | Approved Rim |
Maximum Load (lbs.) @ Press. (PSI) |
Weight (lbs) |
---|---|---|---|---|---|---|---|
P305/35R24 112S XL - Replaced with Recon Grappler | 201100 | 13.9 | 32.52 | 12.17 | 10.0-(11.0)-12.0 | 2469 @ 50 | 49.55 |
LT315/50R24 E 123R - Replaced with Recon Grappler | 200370 | 15.5 | 36.54 | 12.76 | 9.5-(10.0)-11.0 | 3415 @ 65 | 74.02 |
Technical specs are subject to change without notice. LT tires with a "C" load range have a 6-ply rating. LT tires with a "D" load range have an 8-ply rating. LT Tires with an "E" load range have a 10-ply rating. LT Tires with an "F" load range have a 12-ply rating. *Indicates Extra Load (XL)
Sizes and Specs
Factory Tire Size:
Indicates Fits Your Vehicle Indicates Fits Your Rear Tire Size
-
LT285/75R16 D 122/119Q
- Stock Number: 200020
- Tread Depth: 16.5
- Inflated Dimensions - Overall Dia (in): 32.68
- Inflated Dimensions - Overall Width (in): 11.34
- Approved Rim: 7.5-(8.0)-9.5
- Maximum Load (lbs.) @ Press. (PSI): 3305 @ 65
- Weight: 57.43
-
LT295/75R16 D 123/120Q
- Stock Number: 200030
- Tread Depth: 16.5
- Inflated Dimensions - Overall Dia (in): 33.27
- Inflated Dimensions - Overall Width (in): 11.73
- Approved Rim: 7.5-(8.0)-10.0
- Maximum Load (lbs.) @ Press. (PSI): 3415 @ 65
- Weight: 57.87
-
255/60R18 112S XL - Replaced with Nomad Grappler
- Stock Number: 201180
- Tread Depth: 12.7
- Inflated Dimensions - Overall Dia (in): 30.00
- Inflated Dimensions - Overall Width (in): 10.28
- Approved Rim: 7.0-(7.5)-9.0
- Maximum Load (lbs.) @ Press. (PSI): 2469 @ 50
- Weight: 41.17
-
305/40R22 114S XL - Replaced with Recon Grappler
- Stock Number: 200780
- Tread Depth: 13.9
- Inflated Dimensions - Overall Dia (in): 31.61
- Inflated Dimensions - Overall Width (in): 12.32
- Approved Rim: 10.0-(11.0)-12.0
- Maximum Load (lbs.) @ Press. (PSI): 2601 @ 50
- Weight: 45.88
-
P305/35R24 112S XL - Replaced with Recon Grappler
- Stock Number: 201100
- Tread Depth: 13.9
- Inflated Dimensions - Overall Dia (in): 32.52
- Inflated Dimensions - Overall Width (in): 12.17
- Approved Rim: 10.0-(11.0)-12.0
- Maximum Load (lbs.) @ Press. (PSI): 2469 @ 50
- Weight: 49.55
-
LT315/50R24 E 123R - Replaced with Recon Grappler
- Stock Number: 200370
- Tread Depth: 15.5
- Inflated Dimensions - Overall Dia (in): 36.54
- Inflated Dimensions - Overall Width (in): 12.76
- Approved Rim: 9.5-(10.0)-11.0
- Maximum Load (lbs.) @ Press. (PSI): 3415 @ 65
- Weight: 74.02

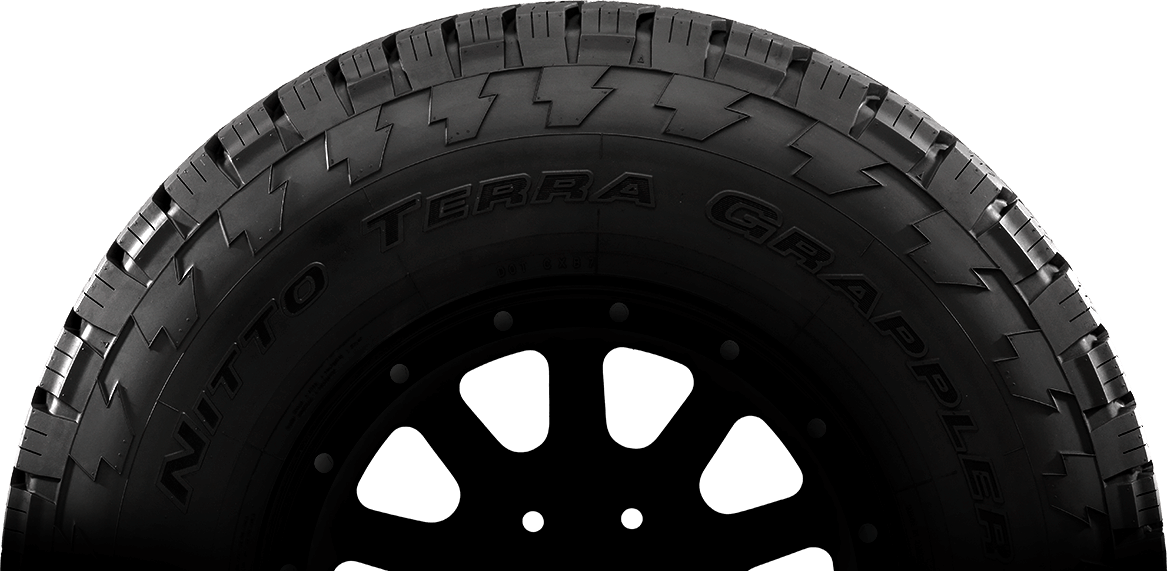

Terra Grappler
All-Terrain Tire
The Terra Grappler® all-terrain tire works year-round with a balance of wet and dry performance and on-road comfort and quietness.
P-Metric and Metric Sizes Only: 500
Find a Store

All weather, all terrain
Designed for use on trucks and SUVs, the Terra Grappler® All Terrain provides balanced performance in all weather conditions over various terrains.


Show your personality
DUAL SIDEWALL DESIGNS
Each Grappler has two sidewall designs so you can choose how your tires look. On the Terra Grappler one side has solid outlined lettering and the other has serrated lettering.





Stay on target
MULTI-PURPOSE HANDLING

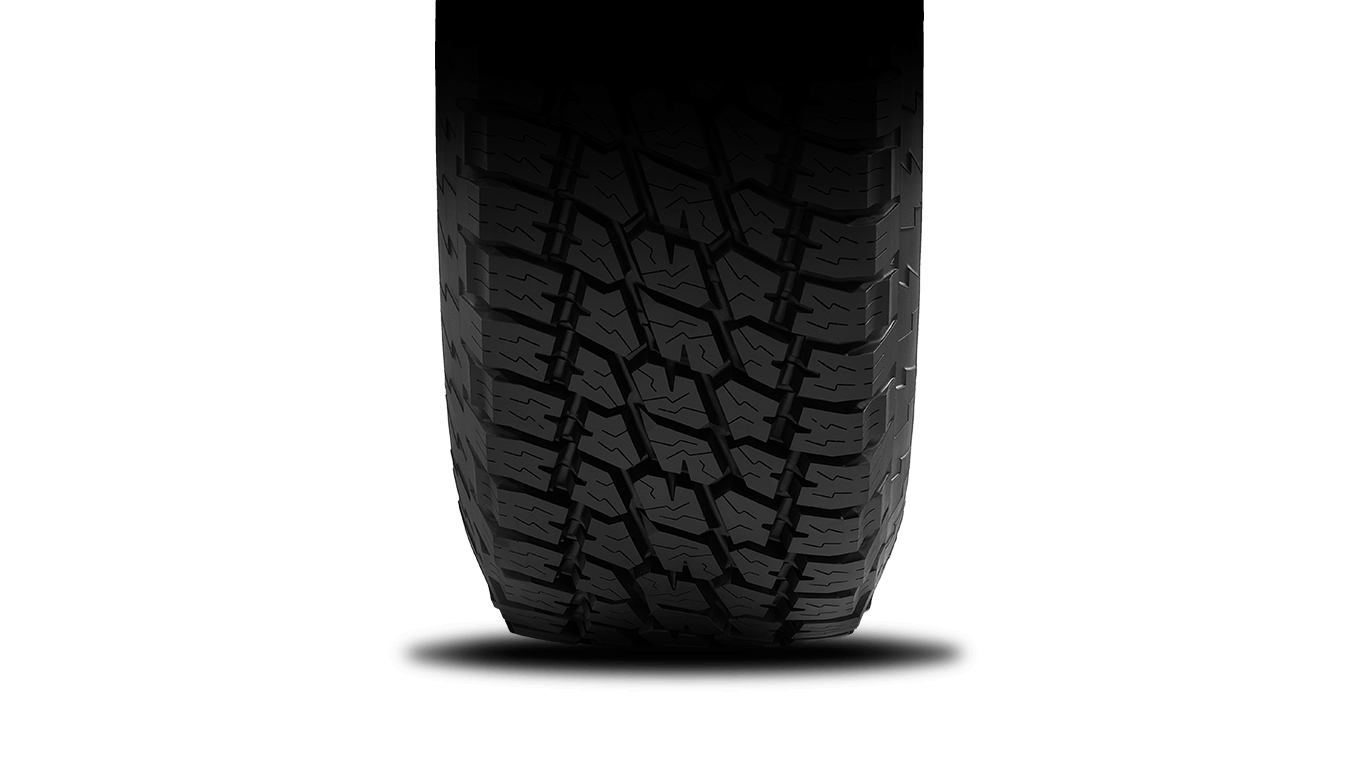

The tread pattern void ratio is balanced for off-road traction and on-road handling. Coupling joints between tread block elements reduce excessive flex for better traction and steering response on and off road. Circumferential voids help the tire maintain straight line traction off-road.



Don't let rain ruin your day
HIGH-DENSITY SIPING
Deep sipes and lateral voids effectively channel away water. Siping helps resist hydroplaning by cutting through pockets of water on road surfaces. This technology provides all-season traction.



Get a grip
OFF-ROAD PERFORMANCE
The lugs on the shoulder are staggered to improve traction in deep sand and loose dirt.



In every condition
ALL SEASON PERFORMANCE
Angled, lateral voids were engineered to channel away water in wet conditions and provide forward stability in dry conditions.



Overall ratings
PERFORMANCE RATINGS
-
Off-Road Performance is a 3 out of 53
-
Dry Performance is a 4 out of 54
-
Wet Performance is a 4 out of 54
-
Quietness is a 4 out of 54
-
Ride Comfort is a 3.5 out of 53.5
UTQG TIRE RATINGS
-
P-Metric and Metric Sizes Only Treadwear:500
-
TRACTION:A
-
TEMPERATURE:B
